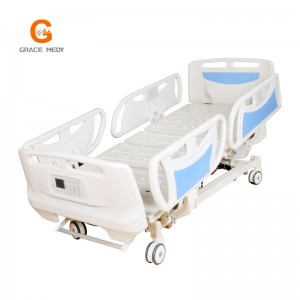

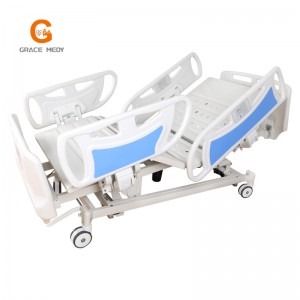

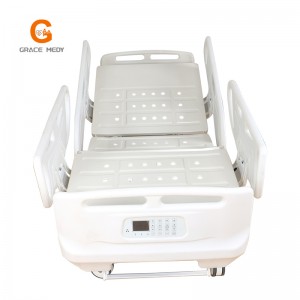

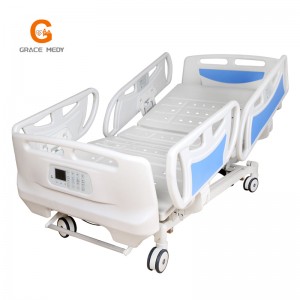

Five function electric hospital tilt bed A01-1
The bed surface is made of high-quality cold-rolled punching steel plate. One - click central brake lock four casters at the same time. ABS anti-collision round bed headboard integrated molding, beautiful and generous. The bed footboard is equipped with an independent nurse operate panel, which can realize all the operation and locking control of the bed. Back part and knee part linkage, one-button seat function for heart paetients, left and right CPR quick reduction function, convenient for heart patients emergency recovery care in emergency situation.Four section type enlarged and widened PP guardrails, 380mm higher than the bed surface, embedded control button, easy to operate. With Angle display. The maximum load bearing capacity is 250Kgs. 24V dc motor control lifting, convenient and quick.
|
Headboard/Footboard |
Detachable ABS anti-collision bed headboard |
|
Gardrails |
ABS damping lifting guardrail with angle display. |
|
Bed surface |
High quality large steel plate punching bed frame L1950mm x W900mm |
|
Brake system |
Central brake central control casters, |
|
Motors |
L&K brand motors or Chinese famous brand |
|
Power supply |
AC220V ± 22V 50HZ ± 1HZ |
|

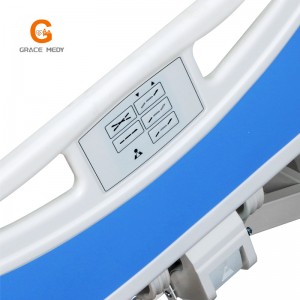

Operation panel |
Nurse operate panel in bed footboard and Bothside operate panels in two guardrails |
|
Back lifting angle |
0-75° |
|
Leg lifting angle |
0-45° |
|
Forward and reverse tilting angle |
0-15° |
|
Max load weight |
≤250kgs |
|
Weight scale |
≤400kgs |
|
Full Length |
2200mm |
|
Full width |
1040mm |
|
Height of the bed surface |
Normal 420~680mm or Customized |
|
Options |
Mattress, IV pole, Drainage bag hook, Battery |
|
HS CODE |
940290 |
The bed surface is made of high-quality cold-rolled punching steel plate. One - click central brake lock four casters at the same time. ABS anti-collision round bed headboard integrated molding, beautiful and generous. The bed foot board is equipped with an independent nurse operate panel, which can realize all the operation and locking control of the bed. Back part and knee part linkage, one-button seat function for heart patients, left and right CPR quick reduction function, convenient for heart patients emergency recovery care in emergency situation.Four section type enlarged and widened PP guardrails, 380mm higher than the bed surface, embedded control button, easy to operate. With Angle display. The maximum load bearing capacity is 250Kgs. 24V dc motor control lifting, convenient and quick.
