Do you know about LED surgical shadowless lamp products?

Do you know about LED surgical shadowless lamp products?

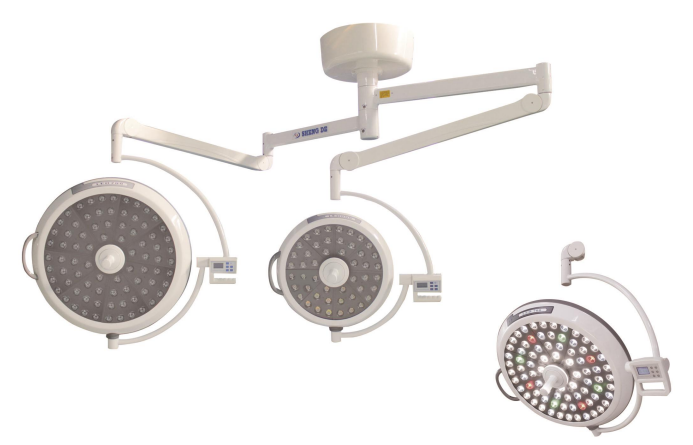

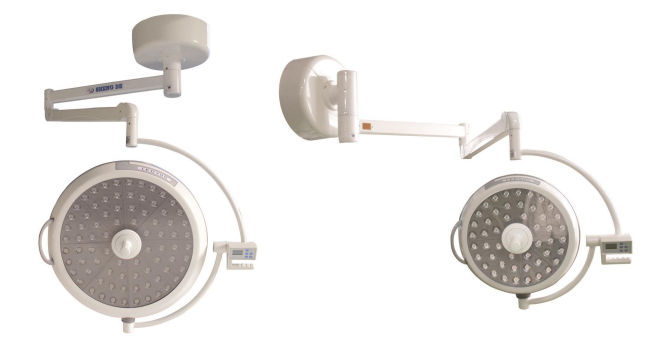

The interior of the LED surgical shadowless lamp is composed of multiple lamp flaps, which are fixed on the balance arm suspension system, with stable positioning and vertical circular movement, which can meet the needs of different heights and angles during surgery. The entire shadowless lamp produced by Grace Medical consists of a mother lamp and a child lamp. Both the mother lamp and the sub-lamp include eight groups of modules: each module of the mother lamp includes ten lamp beads, of which seven are warm white, represented by yellow, three are cool white, represented by gray, and seven warm whites are connected in series to form a Group, three cool whites are connected in series to form a group, which is called high brightness light emitting diode string HBLEDS (High Brighteness Lighting Diode): each module of the sub-light includes six lamp beads, four of which are warm white, represented by yellow, and two are cold. White, four warm whites are connected in series, and two cool whites are connected in series.

●The main lamp and the sub-lamp are controlled by LCD buttons, and the brightness of the two lamp beads can be controlled by PWM respectively, so as to realize the adjustment of the overall brightness, color temperature, and focus. Each module is independent of each other, if one module is damaged, the others can continue to work.

●Lighting light source with long service life: The life of LED light source is as high as 50,000 hours, and the average service life is 40 times that of the halogen light source of the overall reflection shadowless lamp. At the same time, each LED can be replaced individually, which ensures the maximum use economy.

●Excellent cold light effect: Using a new type of LED cold light source as surgical lighting, it is a real cold light source, and there is almost no temperature rise in the doctor’s head and wound area.
1. Good light quality: White LEDs have the chromaticity characteristics that are different from ordinary surgical shadowless light sources, which can increase the color difference between blood and other tissues and organs of the human body, making the doctor’s vision clearer during surgery. Various tissues and organs of the human body are easier to distinguish, which is not available in ordinary surgical shadowless lamps.
⒉. Stepless adjustment of brightness: The brightness of LED is adjusted steplessly by digital method. The operator can adjust the brightness at will according to his own adaptability to brightness, so as to achieve the most ideal comfort. Make eyes that work for a long time less prone to fatigue.
3. No stroboscopic: Because the LED shadowless lamp is powered by pure DC, there is no stroboscopic, it is not easy to cause eye fatigue, and it will not cause harmonic interference to other equipment in the work area.
4. The illumination is uniform; a special optical system is used. 360° uniform illumination on the observed object, no phantom, high definition.
5. Energy saving and environmental protection: LED has high luminous efficiency, impact resistance, not easy to break, no mercury pollution, and the light it emits does not contain radiation pollution of infrared and ultraviolet components.
