This wheelchair of Grace Medical uses a steel frame;
The surface of the body is sprayed;
The weight of the whole vehicle is 44.87KG;
Safe load 100KG;
The wheelchair is driven by two 250W two-stage variable speed holding motors;
12A lead-acid battery;
Cruising range 12KM;
The maximum driving speed is 6KM/h;
Out of the box, the product is equipped with the main body, anti-rear support wheels, 12A battery, front pedal support legs, and seat back cushion.
Instructions:
1. Before use, first lift the foldable backrest, press down both sides of the car body support frame with both hands to unfold the car body;
2. Insert the controller into the fixing hole, the controller can be adjusted back and forth to a comfortable position, retract the fixing bolt;
3. Open the buckle of the seat belt, glue the side of the back cushion with Velcro to the bottom of the backrest, and then glue the side of the seat cushion with Velcro to the bottom of the seat cushion. The seat cushion is designed with a single-sided slope to better form the legs The inner bending space, the side of the inclined plane is installed forward;

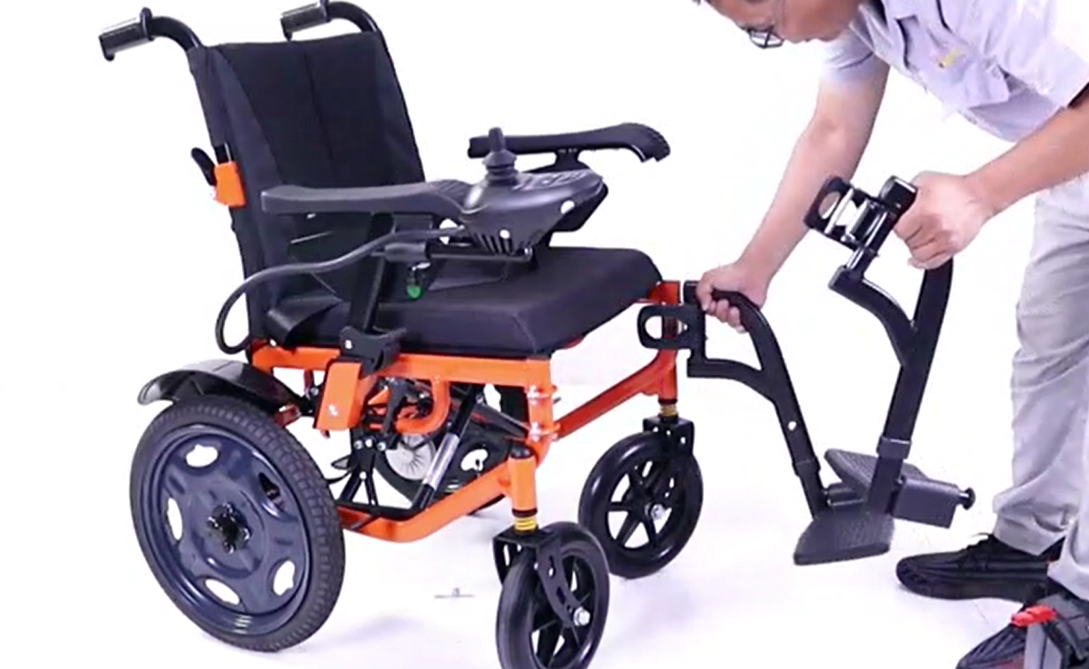

4. Pay attention to distinguish between left and right when installing the front pedal support legs, align the fixing pins with the installation holes, and rotate the support legs inward to lock until they are locked;

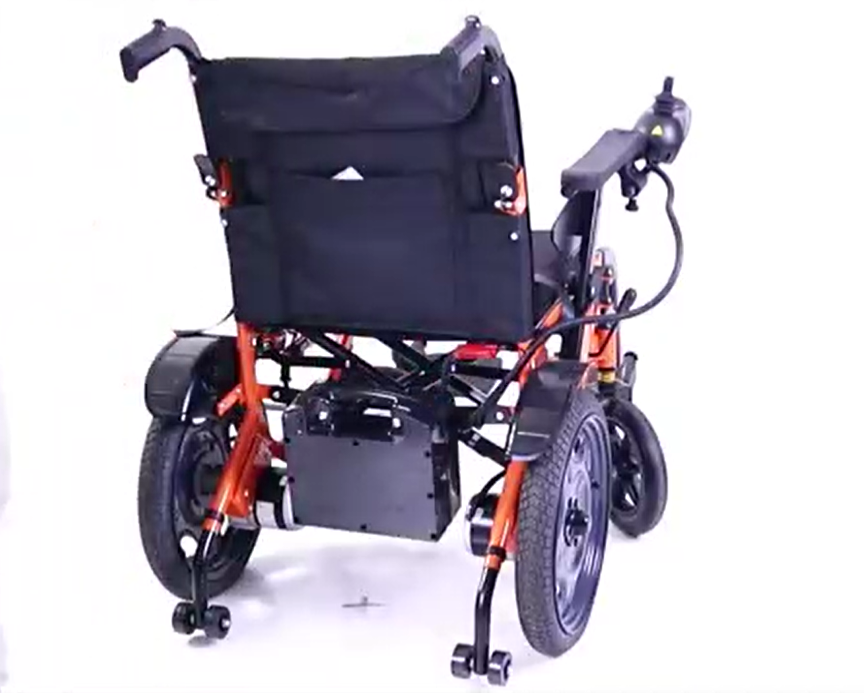

5. To install the anti-backward support wheel, pull out the fixing bolt first, insert the intubation tube into the rear tube, and insert the fixing bolt;
6. The upper part of the battery is equipped with hanging lugs. When installing, the hanging lugs must be aligned with the battery mounting frame of the body and hung firmly to prevent the battery from falling due to bumps during the wheelchair’s driving;
7. The battery cable has a self-locking connector, pay attention to the plugging direction when connecting;

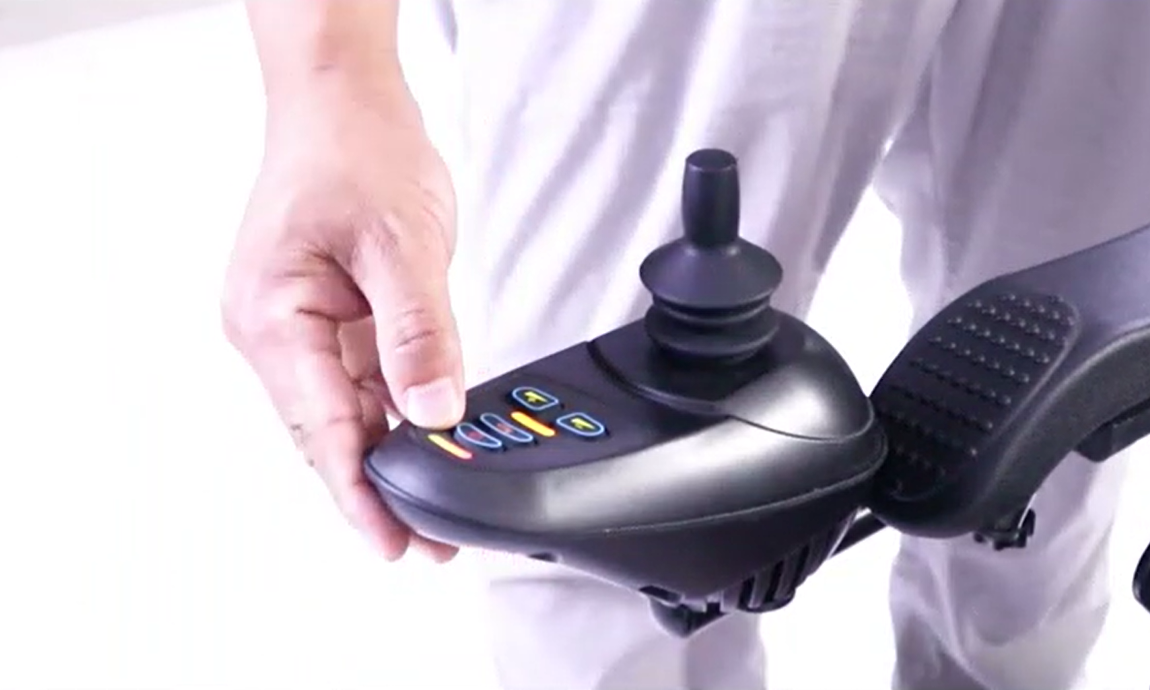

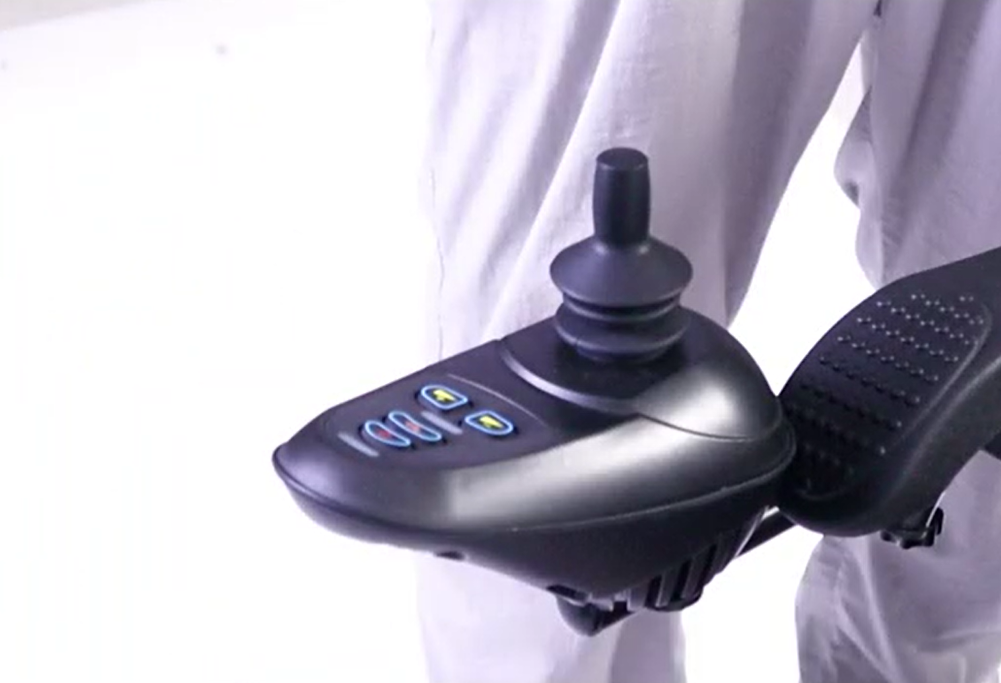

8. The wheelchair controller uses a rocker control method to control the direction of the wheelchair, which can be operated with one hand. The controller is equipped with a power switch, a battery indicator light, a speed adjustment button and an indicator light, and the driving speed can be adjusted in 5 gears;
9. The armrests on both sides of the wheelchair are equipped with buckles, and the armrests of the wave buckles can be turned up, which is convenient for users to get on and off the wheelchair;
10. When storing the wheelchair, the backrest needs to be folded to reduce the storage volume;
11. After removing the battery, fold it for storage
Grace Medical is with you.
