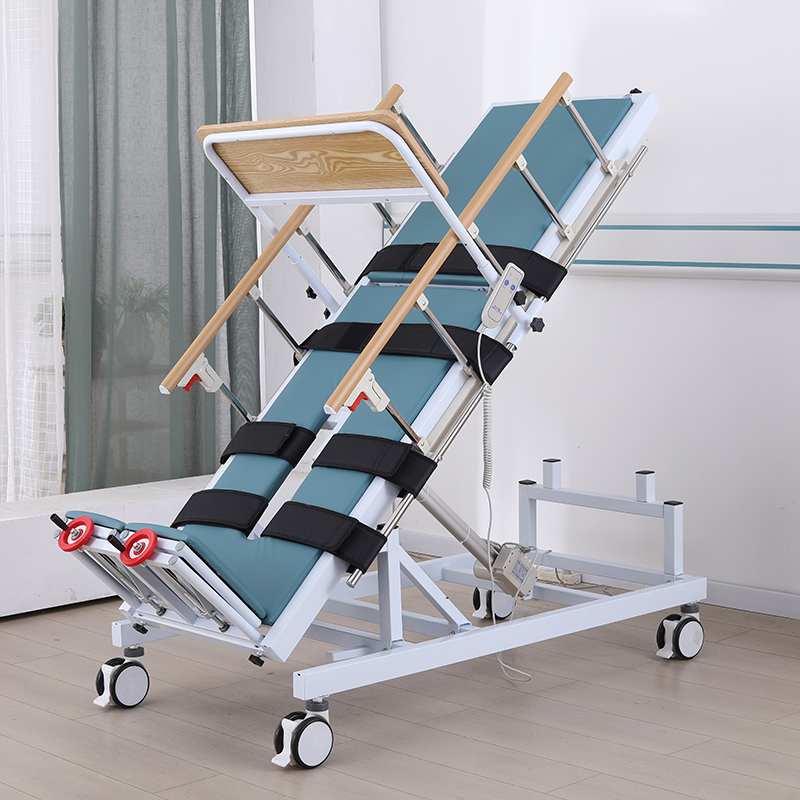

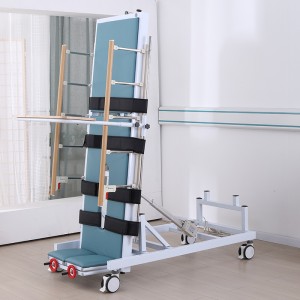

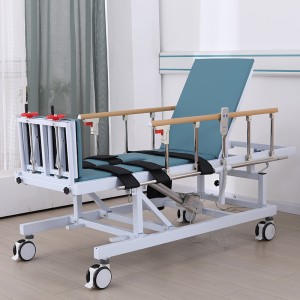

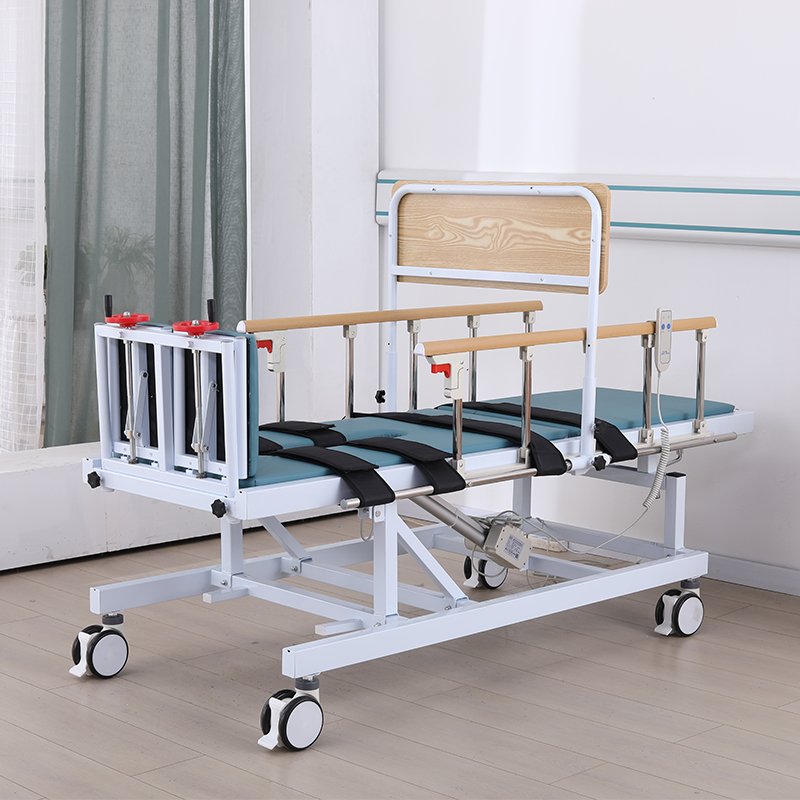

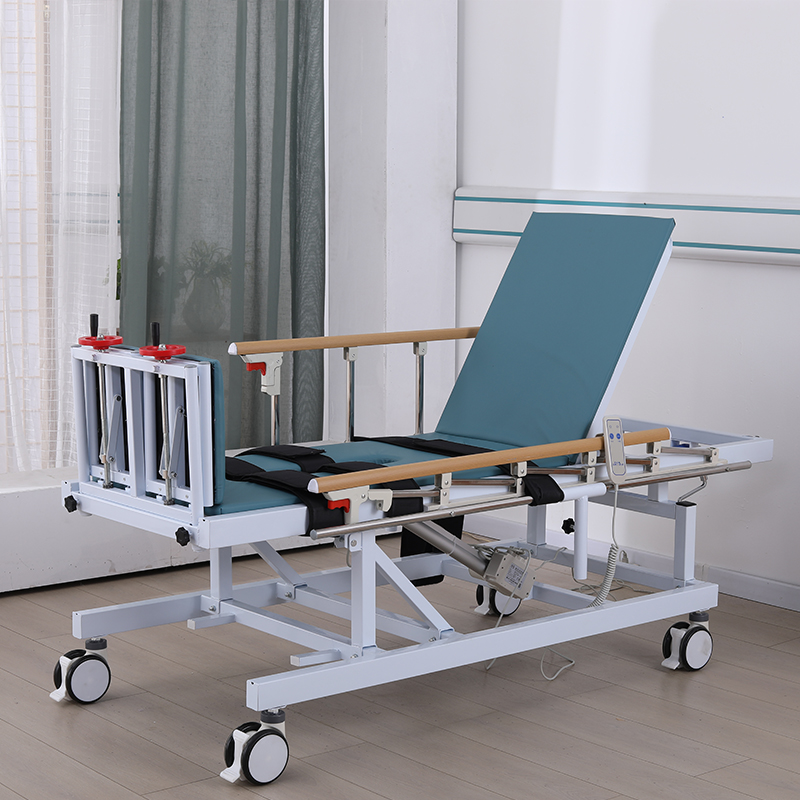

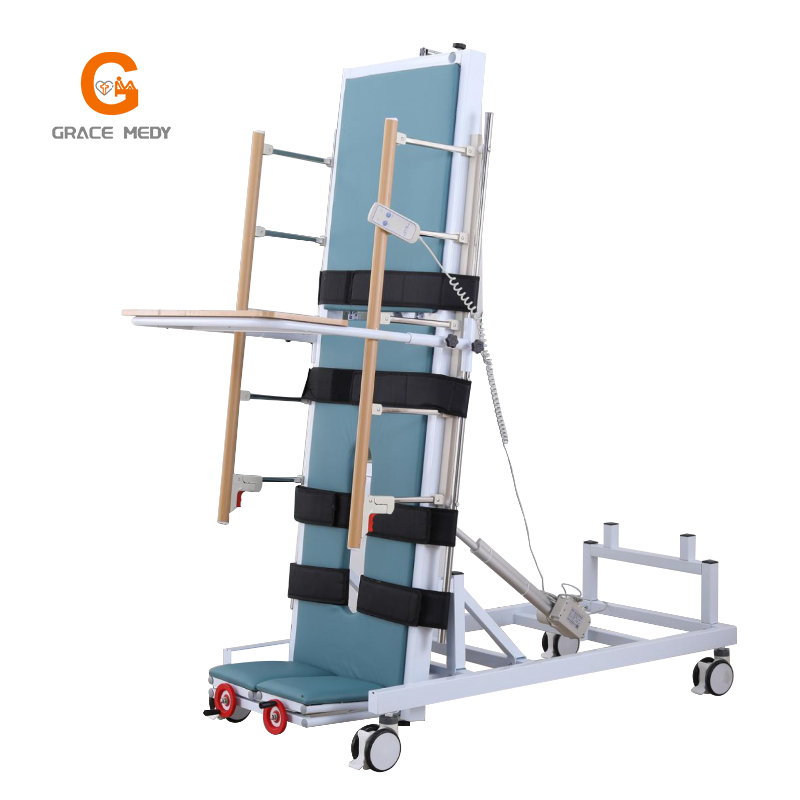

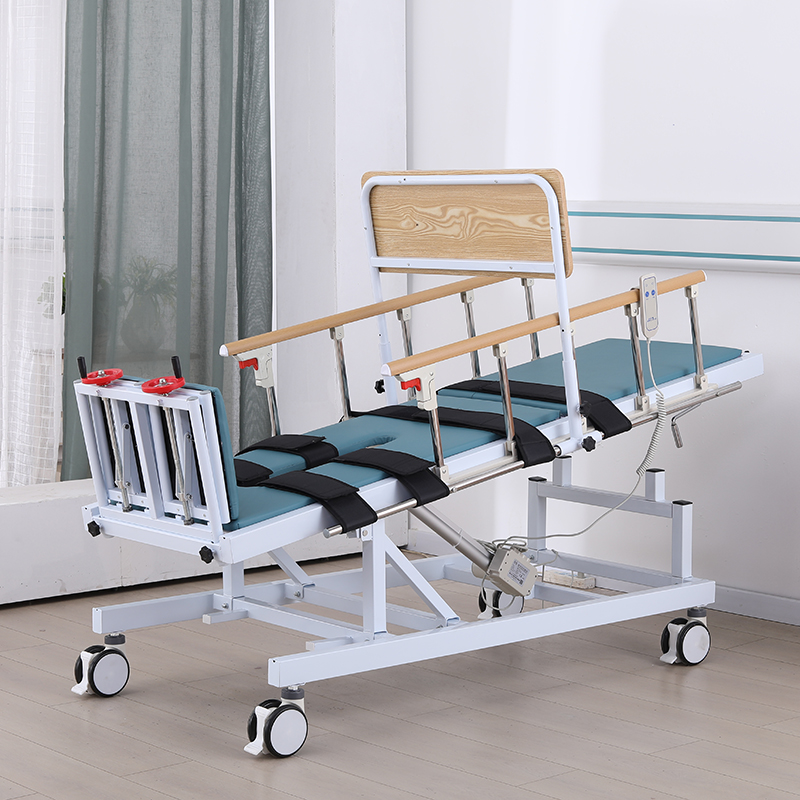

Rehabilitation Hospital Electric Standing Bed TYPE B
1. Specifications and dimensions
1.1 Model specification: JLL-XLC-D/ZL-1 Type B
1.2 Dimensions (1900*800*575±20mm):
1.3 Bed size (1775*520±20mm):
1.4 Footrest size (490*310±20mm):
2. Material and process
2.1 The bed body is made of high-quality cold-rolled steel materials.
2.2 The footrest assembly is composed of an iron frame and a soft-covered wooden board, and the soft-coated wooden board is composed of a sponge and artificial leather-wrapped wooden board.
3. Performance indicators
3.1 Maximum thrust of electric push rod: ≥8000N
3.2 Number of electric push rods: 1 Number of manual rockers: 1
3.3 The electric push rod adopts a slow speed push rod, and the standing speed is slow
3.4 The running time of the bed board from the horizontal to the upright position should not be less than 30s
3.5 Controller: use jog control switch, hand controller to control the system, adjust the bed angle
3.6 Adjustable angle range of standing angle: 0°-80°±5°
3.7 Adjustable angle range of manual lifting: 0°-65°±10°
3.8 Emergency stop function: a device for patient stop bed function control
3.9 Number of guardrails: 2, using 5-fold folding aluminum alloy guardrails
3.10 Number of casters: 4, using single brake
3.11 Quantity of upper limb training device: 1
3.12 Quantity of fixing belts: 4 fixing belts, using quick paste mode, can be locked after being pasted tightly, and can be disassembled and moved after loosening
3.13 Number of foot supports: 1, adjustable foot support
3.14 Number of training tables: 1
3.15 Power supply: ~220V 50Hz
3.16 Power: ≤400VA
3.17 Fuse: 4A/250V
3.18 Noise: ≤60dB(A)
3.19 Maximum load-bearing: 1700N
